Defcon 2023 Qualifier - kkkkklik writeup

I solved this problem with my team "Budaejjigae".



TL; DR

1. Encryption Algorithm

 when click a picture 1337 times, we can encrypt "flag{this_is_a_fake_flag_find_the_real_o" with Blowfish Encryption. and key is set by user input.

2. Encrypted flag

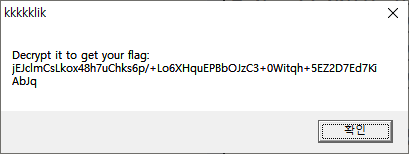

 when click the picture 1333337 times,

can get encrypted flag.

3. Get Key

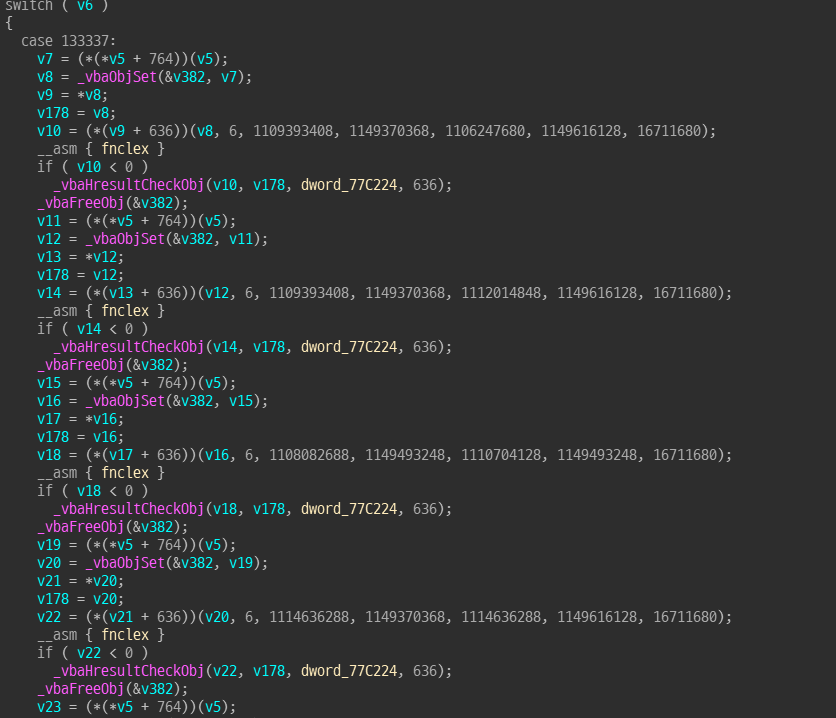

In case 133337, there are many function call by dynamic function table. there are no msgbox.

this routine is draw a key at below of the background bitmap.

set counter variable to 133337 and run at least one time the routine.

use spy++ to get handle of the kkkkklik window, and run below c code.

#include <windows.h>

int main()
{
	//HWND hwnd = FindWindow(0, "kkkkklik");
	HWND hwnd = (HWND)0x0AE08EA;
	MoveWindow(hwnd,0, -500, 1000, 1800, 1);
}

Yes, key is AKAM1337

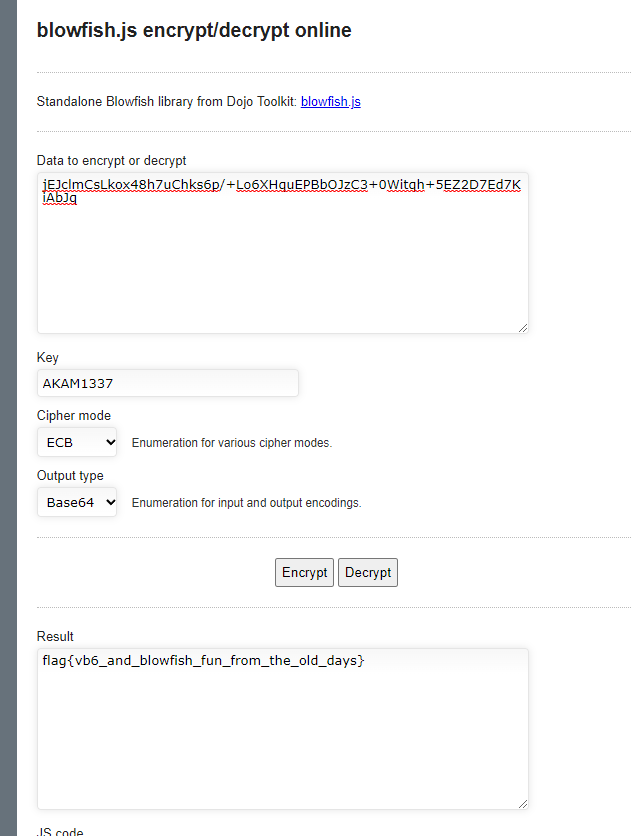

 decrypt at http://sladex.org/blowfish.js/

flag : flag{vb6_and_blowfish_fun_from_the_old_days}



When you run the provided exe file, a strange picture appears.



Alright, let's open it with IDA.



We can know this program was made with Visual Basic.

Next, put the program into VB Decompiler to gather additional information.

We locate the pic_Click callback function. Returning to IDA, we navigate to pic_Click.

there are switch-case statement.

There are cases for 1337, 133337, and 1333337 , each containing obfuscated code.

With dynamic anlysis, we can determine that the variable 'v6' used in the switch statement represents the click count.

so when we click the picture 1337, 133337, 1333337 times, something going on.



now let's open the ollydbg.

set breakpoint on 78064D and click, run, click, run, click, then [ESI+34h] will be 2.

set [ESI+34] to 1337 and patch the counter updating code

set 1337 - 1

and continue.

some MsgBox with a input box will appear.

Let's enter 'asdf' as the key and click a button.

Ok.



set counter to 1333337 and run.



Now, we need to analyze the encryption algorithm.



In 1337 we can see some function call to encrypt with my key.

Call sub_783EA0 - sub_784220 - sub_78FB60 - Done

we can know 3EA0 is Encryption func and 78FB60 is b64 encoding func.



now we need to analysis 3EA0 function.

I spent approximately 4~5 hours analyzing and implementing the 3EA0 function into python code.

and dynamic analysis is very very helpful to know what the function do.



so.... it's too long and hard to detail analysis so jump to python code.



from base64 import b64encode, b64decode


def encrypt(key):
    if key == b'':
        key = b'\xAB'
    DEBUG = False
    kk = bytes(map(lambda x: int(x, 16), 'A1 72 4F E8 FA 10 D3 49 07 92 69 DF 6D 6B 00 CF 0B 20 79 68 F9 29 EF E5 B1 E2 5E C4 A0 74 3E 20 CF 39 58 89 5E 0B A0 F4 E6 7E 24 72 45 14 99 F8 9E 31 DC 0C F4 48 0C 05 9C CD F4 F3 3E 11 37 79 F0 CD 66 5E 32 E3 09 45'.split()))
    dword_7910C8 = [int.from_bytes(kk[i:i+4], 'little') for i in range(0, len(kk), 4)]
    dword_7910E4 = [0] * 1024
    with open('./dump', 'rb') as f:
        tmp = f.read()
        dword_7910E4 = [int.from_bytes(tmp[i:i+4], 'little') for i in range(0, len(tmp), 4)]

    def sub_783A40(x):
        return x ^ 0xcc701829

    def sub_78FA70(a, b):
        return (a + b) & 0xFFFFFFFF

    def sub_783AC0(x):
        tmp = list(reversed([(x >> 8 * i) & 0xFF for i in range(4)]))
        v4 = sub_783A40(dword_7910E4[tmp[0] * 4])
        v8 = sub_783A40(dword_7910E4[tmp[1] * 4 + 1])
        v5 = sub_78FA70(v4, v8)
        v2 = sub_783A40(dword_7910E4[tmp[2] * 4 + 2])
        v5 ^= v2
        v4 = sub_783A40(dword_7910E4[tmp[3] * 4 + 3])
        return sub_78FA70(v5, v4)


    def sub_783BC0(_a, _b, _c):
        a, b, c = _a, _b, _c
        tmp = 0
        for i in range(16):
            b ^= sub_783A40(dword_7910C8[i])
            tmp = sub_783AC0(b) ^ c
            c = b
            b = tmp

        b = c
        c = tmp ^ sub_783A40(dword_7910C8[16])
        b ^= sub_783A40(dword_7910C8[17])

        return (a,b,c)

    for i in range(18):
        v6 = 0
        for j in range(4):
            v6 |= key[(i*4 + j) % len(key)]
            v6 <<= 8
        v6 >>= 8
        dword_7910C8[i] ^= v6

    b, c = (0,0)
    for i in range(0, 18, 2):
        a,b,c = sub_783BC0(0,b,c)
        dword_7910C8[i] = sub_783A40(b)
        dword_7910C8[i+1] = sub_783A40(c)


    result = b''.join([dword_7910C8[i].to_bytes(4, 'little') for i in range(16)])

    print(result.hex())

    for i in range(4):
        for k in range(0, 256, 2):
            a,b,c = sub_783BC0(a,b,c)
            dword_7910E4[4*k + i] = sub_783A40(b)
            dword_7910E4[4*(k+1) + i] = sub_783A40(c)

    result = b''.join([dword_7910E4[i].to_bytes(4, 'little') for i in range(16)])

    print(result.hex())

    DEBUG = True
    fake_flag = b'flag{this_is_a_fake_flag_find_the_real_o'
    fake_flag = [int.from_bytes(fake_flag[i:i+4], 'big') for i in range(0, len(fake_flag), 4)]
    result = []
    for i in range(0,len(fake_flag),2):
        b, c = fake_flag[i], fake_flag[i+1]
        a, b, c = sub_783BC0(0, b, c)
        result.append(b.to_bytes(4, 'big') + c.to_bytes(4, 'big'))

    result = b''.join(result)
    print(len(result))
    print(b64encode(result))


encrypt(b'asdf')

here is short above encrypt func.

1. there are two constant table A and B.

    int A[18], int B[256][4]

2. xor each bytes of A and input key.

3. update A and B table with A, B table.

4. encrypt "flag{this_is_a_fake_flag_find_the_real_o" (plain text)



B table is 4 sboxes.

I panicked after writing the above python code because of thinking that "How to make decrypt() func?".

the input key greatly influences the entire encryption process, so hard to reverse it.



that time, the team member give me the pretty cool information.

OMG. there are 4 sboxes!!!!!

http://sladex.org/blowfish.js/

blowfish.js encrypt/decrypt online

 test some input, key-output in above site, we can decide this encryption is Blowfish.





Ok, now we only have to know "key"!

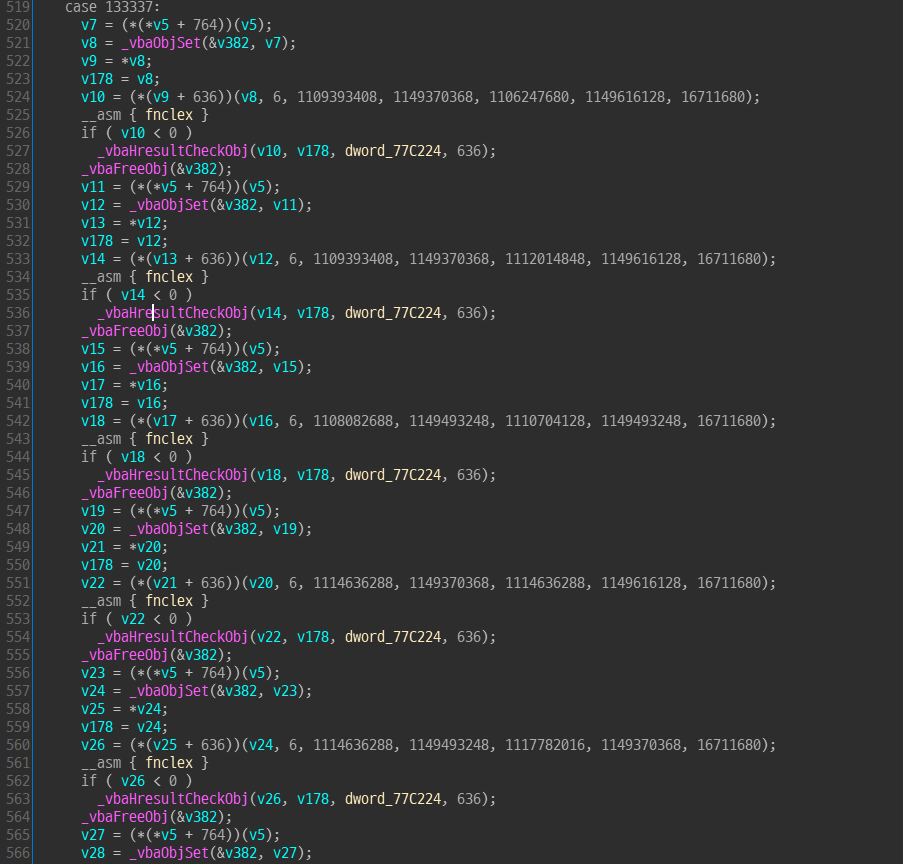

and there are 133337 case that we don't see.

there are no MsgBox or any other output function calls.

I once again think a lot of time about this part.

"Is it forensic? Can I exoprt the background image?"

Using binwalk, I can extract the bitmap file.

long long long picture

By watching bitmap's header, we can deduce this file's size is intended. why? why it have long long space?

I expected that key is written bottom of the picture or some stegano, but I was fail.



I open VB decompiler and watch API section.

What? there are CreatePen, CreatePatternBrush .. functions that related with Drawing something.

then we can guess unknown routine in 133337 case is drawing key at bottom space.

let's check it.



first, set the counter to 133337 - 1 and run the program.

second, call MoveWindow to resize kkkklick window.



#include <windows.h>

int main()
{
	//HWND hwnd = FindWindow(0, "kkkkklik");
	HWND hwnd = (HWND)0x0AE08EA;
	MoveWindow(hwnd,0, -500, 1000, 1800, 1);
}

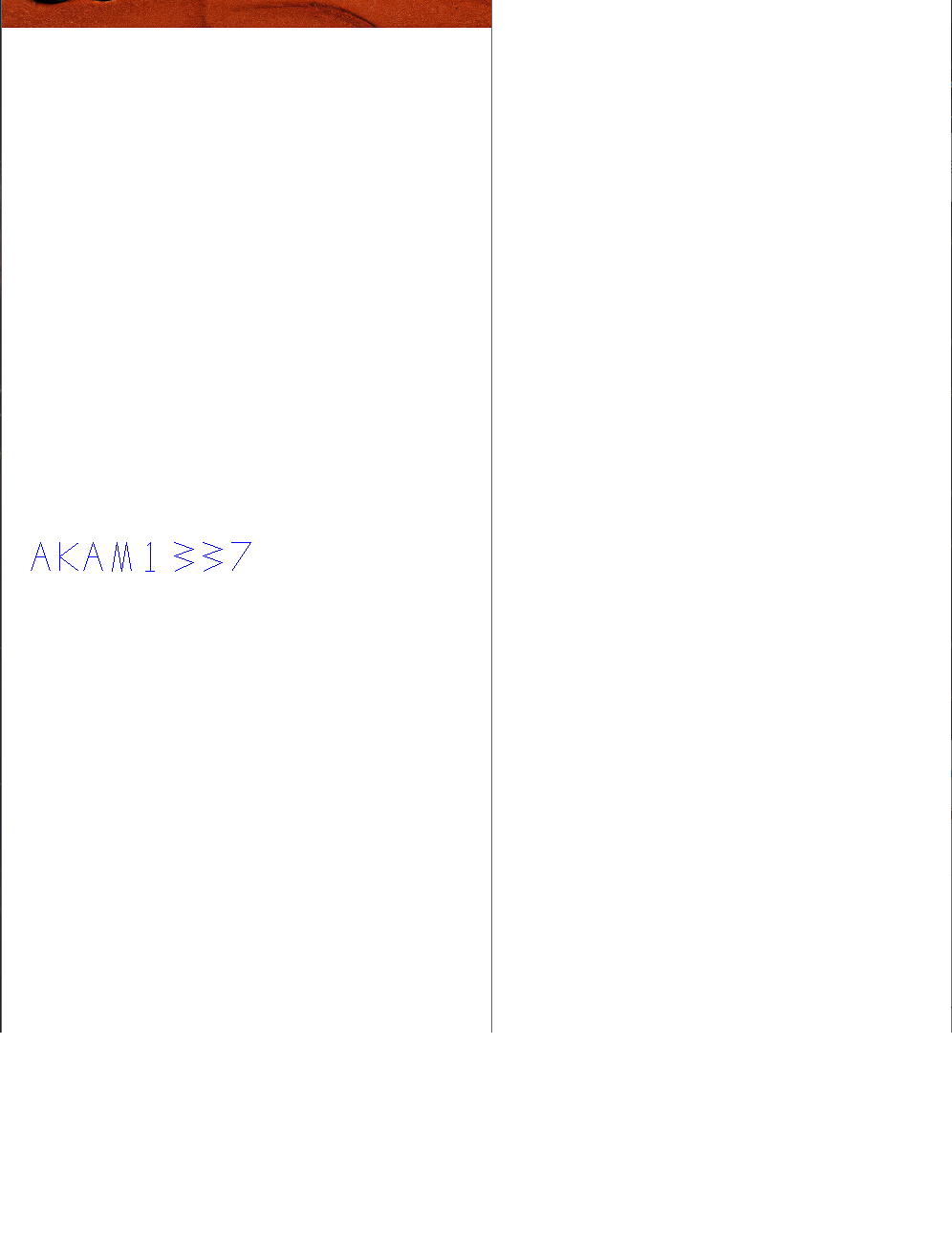

YEAAAAAAAAAAAAAAAH

Key is AKAM1337



flag{vb6_and_blowfish_fun_from_the_old_days}



Thanks to Budaejjigae team!
